PRODUCT OVERVIEW

The Driver Display unit uses TFT 10.4” LCD display. This system is used as a man machine interface for the locomotive. This system is basically designed for Indian railways 3-Ø locomotive (i.e. WAG-9, WAP-5, and WAG-9 H, WAP-7). DDU is panel mount system consist of 10.4” LCD touch screen TFT display. Various fault messages related to locomotive malfunctioning are displayed into context sensitive screens (i.e pop-screen) to get the driver’s attention towards it and all these faults are logged into the memory along with status of devices involved. USB port has been provided for Data logging and getting the history of faults.

This system retains all the features of existing Diagnostic terminal used in the locomotive as well as provides the pictorial representation of different process variable involved in locomotive control system by scrolling predefined pictorial windows using functional keys.

This system consists of RS – 422 as well as MVB interfacing port.

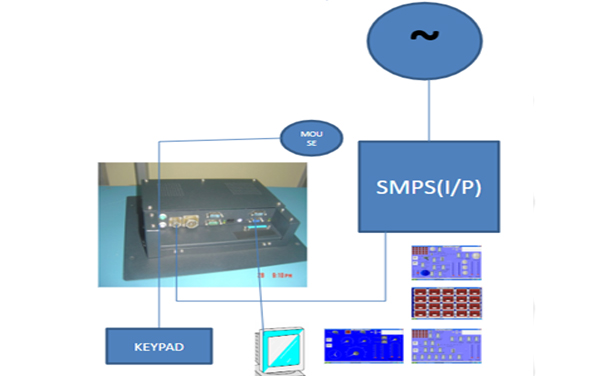

TEST SETUP

OUTER DRAWING


PRODUCT SPECIFICATION

SPECIFICATION
Operating Voltage 77- 137 V
Communication Port RS 422,RS-485,RS-232 MVB,GPS,USB 2.0 ,Ethernet, parallel
Display TFT LCD display with brightness control, 800 X 600 pixel resolution, 10.4” size, 400 cd/m2 brightness. Higher brightness available on request
Memory size 8 GB
Processor Low power AMD fan less Processor and chassis cooled
